This broadband RF power module is suitable for driver of amplifier. It is also useful for amplifying low power of FM, VHF and UHF transmitter in the frequency range 50-500MHz. RF output power can be adjusted by lowering the supply voltage or with a bias trimmer. For work with this amplifier module, some accessories need as a heat sink, power supply, filter and fans.
All Amplifier Models
 |
Manufacturer: RF Application Co., Ltd. |
| Product Name: UHF Amplifier 3040-10 |
| Model # : AMP-3040-10 |
|
| Price: |
$178.00 |
|
|
|
| Product Features |
 |
Frequency range 300 ‐ 400 MHz |
|
SMD design |
|
Broadband design |
|
Build‐in directional coupler |
|
Bias adjustable |
|
Output up to 10 Watts |
|
| Technical Specifications |
|
Physical and Environmental Specifications |
| Frequency Range |
300 ‐ 400 MHz |
|
Operating Temperature |
‐10°C to +50°C (+14°F to +122°F) |
| Power input |
100mW (max) |
|
Storage Temperature |
‐40°C to +80°C (‐40°F to +176°F) |
| Power output |
up to 10 watts |
|
DC input requirement |
12.0‐14VDC@3A |
| Input/output impedance |
50 ohm |
|
Dimension |
8.7 X 7.8 X 2.0 cm. (W x L x H) |
| Second harmonic |
>‐30dBc |
|
Weight |
0.4 Kg. |
|
 |
Manufacturer: RF Application Co., Ltd. |

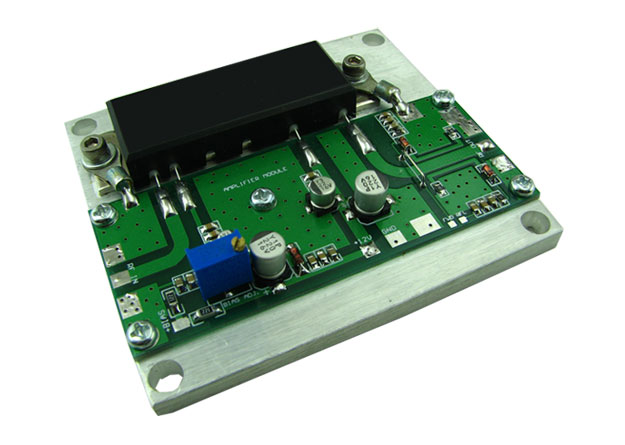

| Product Name: UHF Amplifier 4047-10 |
| Model # : AMP-4047-10 |
|
| Price: |
$178.00 |
|
|
|
| Product Features |
|
Frequency range 400 ‐ 470 MHz |
|
SMD design |
|
Broadband design |
|
Build‐in directional coupler |
|
Bias adjustable |
|
Output up to 10 Watts |
|
| Technical Specifications |
|
Physical and Environmental Specifications |
| Frequency Range |
400 ‐ 470 MHz |
|
Operating Temperature |
‐10°C to +50°C (+14°F to +122°F) |
| Power input |
100mW (max) |
|
Storage Temperature |
‐40°C to +80°C (‐40°F to +176°F) |
| Power output |
up to 10 watts |
|
DC input requirement |
12.0‐14VDC@3A |
| Input/output impedance |
50 ohm |
|
Dimension |
8.7 X 7.8 X 2.0 cm. (W x L x H) |
| Second harmonic |
>‐30dBc |
|
Weight |
0.4 Kg. |
|
|
