The 4 ways Splitter/Combiner designed for FM radio transmitter. This splitter/combiner builds on FR4 and Teflon laminate and micros strip technology to enhance ruggedness reliability. Our products are design base on Wilkinson splitter/combiner theorem. Please provide the best impedance match for this module to prevent power losses and damage.

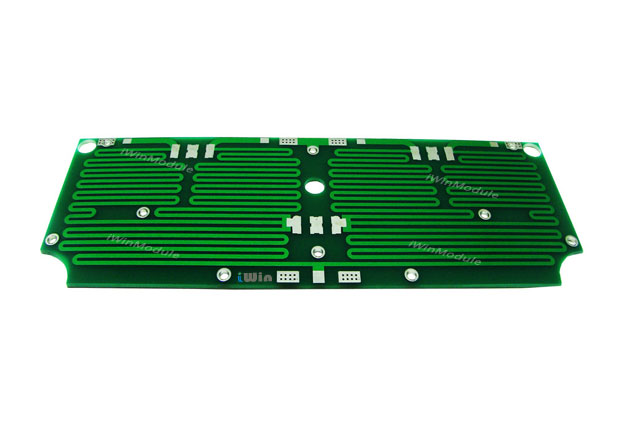

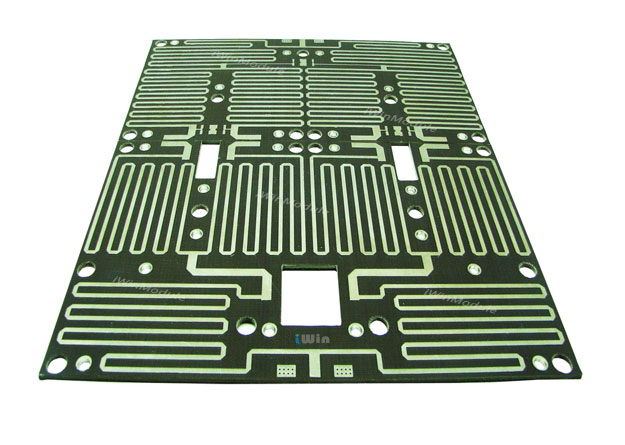

4SP-FM 4SC2000-FM Manufacturer: iWin Product Name: 4 ways Splitter Model # : 4SP-FM Price: $23.00     Data Sheet       Product Features 4 ways splitter FR4 laminate Frequency range 87.5 - 108 MHz Power rating 50 Watts Input/Output impedance 50 Ohm Accept for resistor 100 Ohm x 3 set  Technical Specifications  Physical Specifications  Power rating  50 W max.    Dimension  69 X 205 X 3 mm. (L x W x H)  Input/Output impedance  50 ohm    Weight  0.05 Kg.  Frequency Range  87.5 ÷ 108 MHz        Working temperature  < 50°C (recommend)        Material  FR4, 1.6 mm thickness       Manufacturer: iWin Product Name: 4 ways Splitter/Combiner 2000 W Model # : 4SC2000-FM Price: $161.00     Data Sheet       Product Features 4 ways splitter and combiner Power rating 2000 Watts Frequency range 87.5 - 108 MHz Splitter accept for resistor 100 Ohm x 3 set Input/Output impedance 50 Ohm Combiner accept for resistor 250 W 100 Ohm x 2 set Teflon laminate   and 500 W 100 Ohm x 1 set  Technical Specifications  Physical Specifications  Power rating  2000 W    Dimension  200 X 210 X 2 mm. (L x W x H)  Input/Output impedance  50 ohm    Weight  0.2 Kg.  Frequency Range  87.5 ÷ 108 MHz        Working temperature  < 70°C (recommend)        Material  Teflon, 1.6 mm thickness
