The High FM Pallet designed for FM radio transmitter (> 1000 watts). This pallet incorporates micro strip technology and MOSFET transistor to enhance ruggedness reliability. A pallet is an amplifier module mounted on an aluminum or copper base plate. FM pallet amplifiers are excluding RF connectors or electrical connectors and are ready to be mounted to a heatsink.

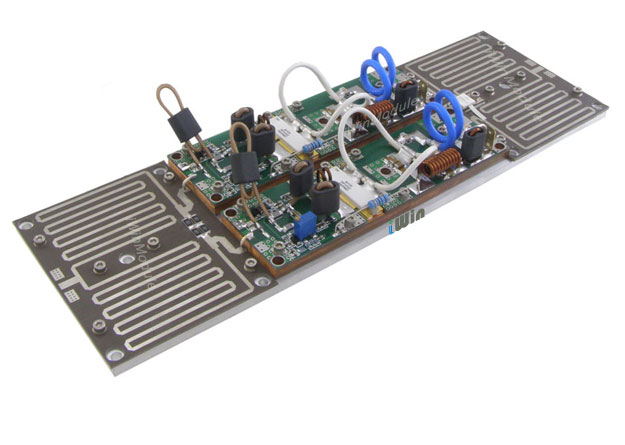

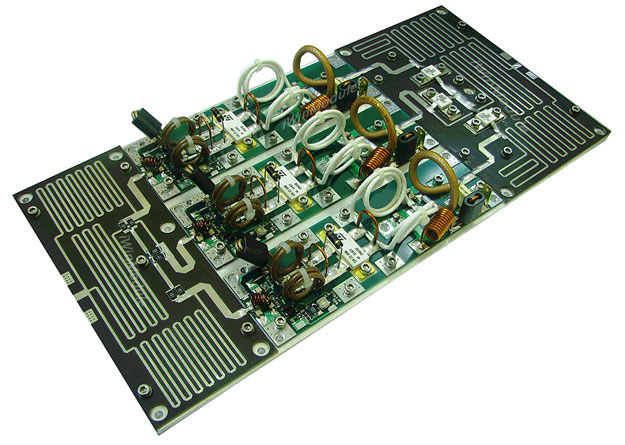

A1000-FM A1500-FM Manufacturer: iWin Product Name: FM Pallet 1000 W Model # : A1000-FM Price: $1,320.00     Data Sheet       Product Features Frequency range 87.5 - 108 MHz DC 48 Volts Input/Output impedance 50 Ohm Output 1000 Watts Gain 19 dB MOSFET SD2942 x 3  Technical Specifications  Physical Specifications  Power output  1000 W    Dimension  315 X 153 X 35 mm. (L x W x H)  Input/Output impedance  50 ohm    Weight  2.5 Kg.  Gain  19 dB (typical)        Power input  12 watts type        Frequency Range  87.5 ÷ 108 MHz        Efficiency  75% type (@1000 watts)        Power requirement  28A@48V (typical 1000W)       Manufacturer: iWin Product Name: FM Pallet 1500 W Model # : A1500-FM Price: $1,427.00     Data Sheet       Product Features Frequency range 87.5 - 108 MHz DC 40 Volts Input/Output impedance 50 Ohm Output 1500 Watts Gain 25 dB MOSFET BLF178P x 2  Technical Specifications  Physical Specifications  Power output  1500 W    Dimension  320 X 105 X 35 mm. (L x W x H)  Input/Output impedance  50 ohm    Weight  1.6 Kg.  Gain  25 dB (typical)        Power input  8 watts type        Frequency Range  87.5 ÷ 108 MHz        Efficiency  80% type (@1500 watts)        Power requirement  45A@40V (typical 1500W)
